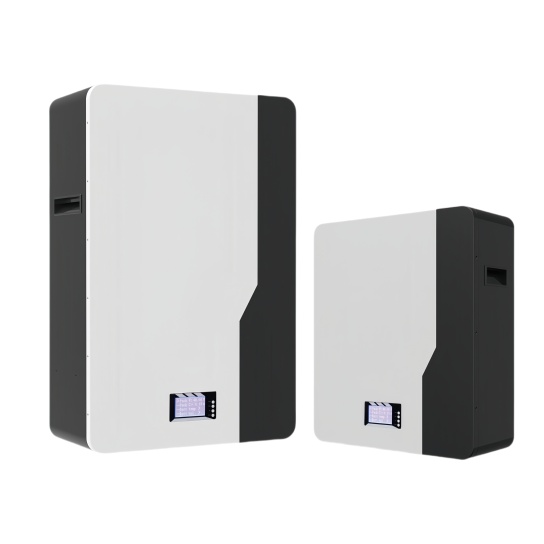

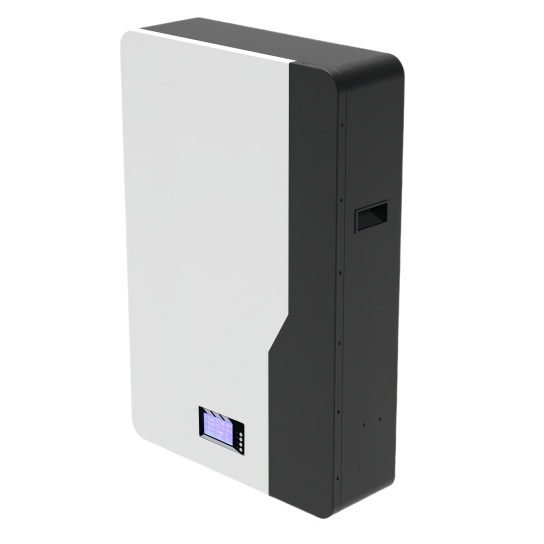

51.2V /48V 100Ah-200Ah LiFePO4 Wall-mounted Household Solar Energy Storage Battery
Overviews

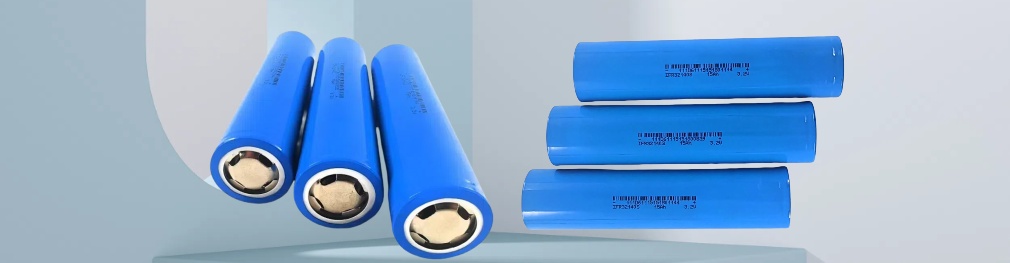

- Original Grade A lithium iron phosphate battery cell has high safety and reliability
- The charging and discharging efficiency is high, and the number of cycles is more than 6000 times

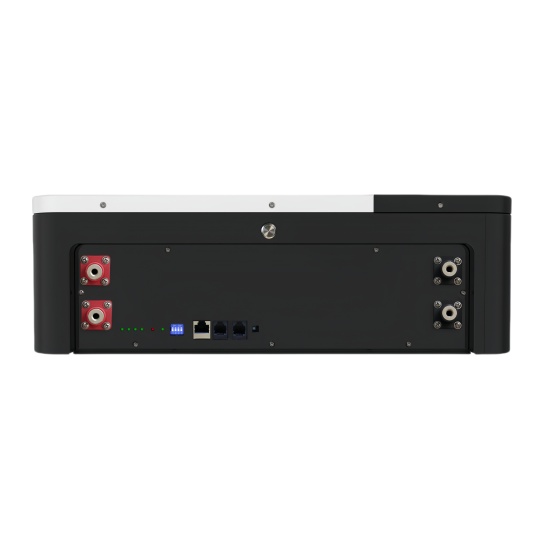

- Supporting RS485 and CAN communication
- Compatible with most inverters on the market
- Modular design, can be expanded at any time to increase the energy of the system
- Supporting up to 15 batteries in parallel
- ON/OFF switch control output
- The LCD display monitors the operating status in real time
Our Services
- Best quality and the lowest price can meet your demand.
- Impeccable after-sales services will solve all worries after you buy our products.
- 24 hours on line to reply you immediately.
- OEM/ODM is available( logo/ design/ packaging and so on.)
- Every process will be checked by responsible QC which insure the products’ quality;
- Samples could be prepared for you on time;
- Guide you how to install;
- Compensate for the product if some quality problems on our side;
- If you come to visit our factory, please inform us in advance.
Technical Data
Item | 100AH | 200AH | |
Product Model | M16S100BL-V | M16S200BL-V | |
Cells In Series | 16S | ||
Rated Energy | 5.12KWh | 10.24KWh | |
Rated Voltage | 51.2V | ||
Charging Voltage | 58.4V | ||
Discharge Cut-off Voltage | 42V | ||
Standard Charge Current | 20A | 40A | |
Maximum Charging Current | 100A | ||
Maximum Discharge Current | 100A | ||
Cycle Life | ≥ 6000 times @ 80% DOD, 25 °C | ||
Methods Of Communication | RS232/RS485/CAN | ||
Charging Temperature | 0~60℃ | ||
Discharge Temperature | -10~65℃ | ||
Product Dimensions | 440×186×560mm | 450×206×670mm | |
Net Weight | 44KG | 87KG | |
Packing Dimensions | 512×255×632mm | 525×410×755mm | |
Gross Weight | 50KG | 104KG | |
How It Is Displayed | LCD display | ||
IP Protection | IP 21 |
Overviews
* Applicable for electric bikes, e-scooters, e-motorcycles,and other small vehicles;
* Fixed to the down tube easily and save space;
* Thin size and light weight with Plastic material;
* Special cell holders design is safer for cells’ vibration
